Protect Our Earth with DAWN‘S Solar Products
Solar LiFePO4 Battery main Features:
1.Advanced A grade cells,more than 6000 cycle times.
2.Highest energy efficiency.
3.Flexible investment, meet different energy requirements.
4.Easy to carrry and install.
5.Safer performance,batteries have passed different safety testings.
6.Growatt,Goodwe,Deye,Luxpower,Megarevo,etc hybrid inverters BMS compatible.

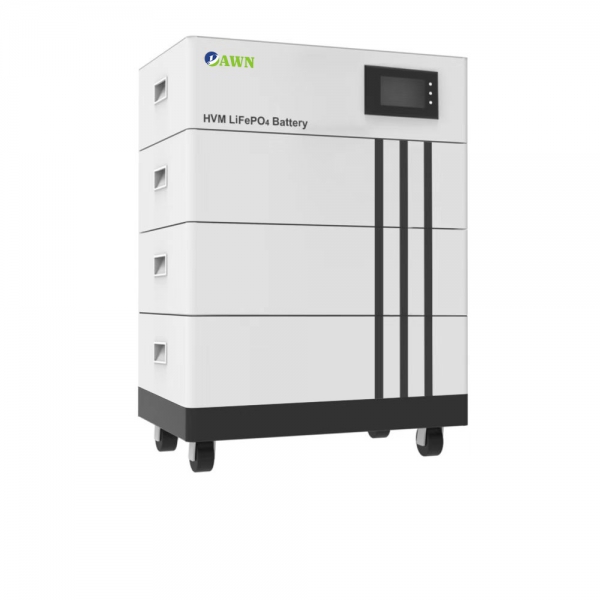

15KWH High Voltage 144V 100AH LiFePO4 Battery
Solar LiFePO4 Battery main Features:
1.Advanced A grade cells,more than 6000 cycle times.
2.Highest energy efficiency.
3.Flexible investment, meet different energy requirements.
4.Easy to carrry and install.
5.Safer performance,batteries have passed different safety testings.
| Model NO. | DL-96V100AH | DL-144V100AH | DL-192V100AH | DL-240V100AH | DL-288V100AH | DL-336V100AH | DL-384V100AH |
| Number of Modules | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Capacity | 96V100AH | 144V100AH | 192V100AH | 240V100AH | 288V100AH | 336V100AH | 384V100AH |
| Rated Energy (KWH) | 9.6KWH | 14.4KW | 19.2KW | 24KW | 28.8KW | 33.6KW | 38.4KW |
| Nominal Voltage(V) | 96V | 144V | 192V | 240V | 288V | 336V | 384V |
| Operating Voltage(V) | 80-109V | 120-164V | 160-219 | 200-274 | 240-328 | 280-383V | 320-438V |
| Dimension(mm) | 574*395*302 | 574*395*470 | 574*395*638 | 574*395*806 | 574*395*974 | 574*395*1142 | 574*395*1310 |
| Net Withg(KG) | 108KG | 148KG | 188KG | 228KG | 268KG | 308KG | 348 KG |
| DOD | ≥90% | ||||||
| Cycle Life | >6000 Times | ||||||
| Comminication | CAN | ||||||
| Charge Temperature | 0~60°C | ||||||
| Discharge Temperature | -20°C~60°C | ||||||
| Mounting Method | Floor Stand | ||||||
| Warranty | 5 Years | ||||||
